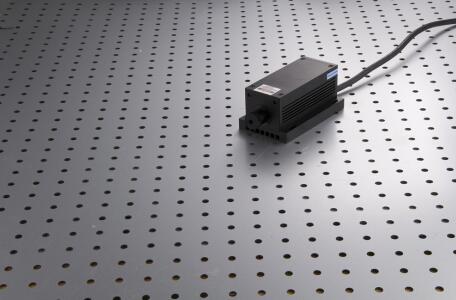

1064nm激光器| Model No. | LLR1064H-Q |
| Wavelength | 1064 nm |
| Spatial Mode | TEM00 |
| Average Output Power | 200~1000mW |
| Single pulse energy | 5-100uJ |
| Pulse Width | 5-50ns |
| Peak Power | 500W~10KW |
| Repetition rate | 10Hz~50K Hz |
| Control rate | 0~50K Hz |
| Beam Spot Shape | Circular, aspect ratio<1.1:1 |
| Pointing Stability | <0.05 mrad |
| Beam Diameter(1/e2) | <1.5 mm |
| Beam Divergence | <1.5 mrad |
| Power Stability* | <±3% per 2 hrs |
| Beam Height | 29mm |
| Temperature Stabilizing | TEC |
| Warm Up Time | <5 minutes |
| Beam Quality (M2) | <2 |
| Optimum Operating Temperature | 20~30oc |
| Storage Temperature | 10~50oC |
| MTTF** | 10,000 hrs |
| Laser head dimensions | 155(L)x77(W)x60(H)mm3 |
| Power Supply | 220v数显可调 |
