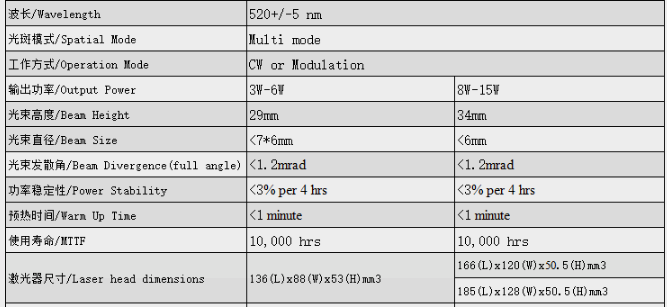

光斑模式/Spatial Mode

Multi mode

工作方式/Operation Hode

CW or Modulation

输出功率/Output Power

3W-6T

8W-15W

光束高度/Bean Height

29mm

34πm

光束直径/Bean Size

<7*6mm

<6mm

光束发散角/Beam Divergence(full angle)

<1.2mrad

<1.2mrad

功率稳定性/Power Stability

<3%per 4 hrs

<3%per 4 hrs

预热时间/Warn Up Time

<1 minute

<1minute

使用寿命/ⅢTTF

10,000 hrs

10,000 hrs

激光器尺寸/Laser head dimensions

136(L)x88(W)x53(H)mm3

166(L)x120(W)x50.5(H)mm3

185(L)x128(W)x50.5(H)mm3
