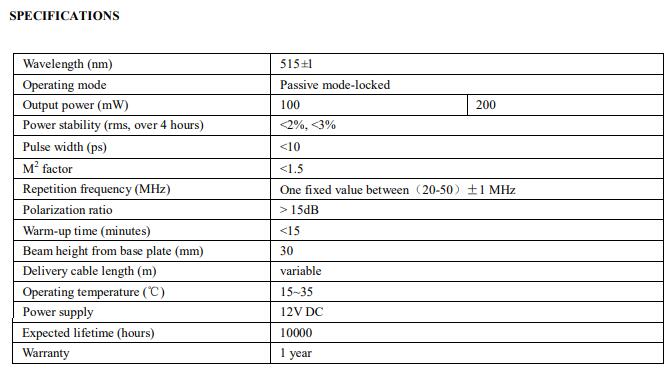

Operating mode工作方式

Passive mode-locked

Output power(mW)输出功率

100

200

Power stability(rms,over 4 hours)功率稳定性

<3%

Pulse width(ps)脉宽

<10

M² factor光束质量

<1.5

Repetition 频率frequency(MHz)

One fixed value between(20-50)±1 MHz

Polarization ratio偏振比

>15dB

Warm-up time(minutes)预热时间

<15

Beam height from base plate(mm)中心高

30

Delivery cable length(m)

variable

Operating temperature(℃)工作温度

15~35

Power supply供电电压

12VDC

Expected lifetime(hours)寿命

10000

Warranty保修

I year
